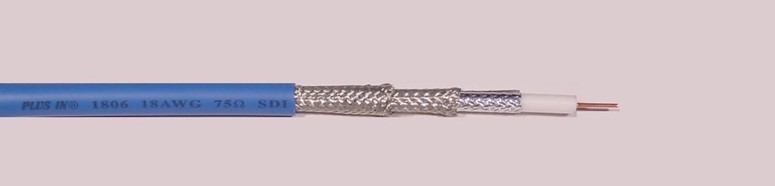

1806 三層屏蔽(Triple-shielded)(18AWG/RG-6)
75Ω 3G/6G/12G-SDI 三層屏蔽數位影像同軸電纜 (18AWG) 75Ω 3G/6G/12G-SDI Triple shielding Digital Video Coaxial Cable (18AWG)
| 類型Type | 外徑O.D.(mm) | 單元結構Composition | 電氣特性Electrical Characteristics | ||||
|---|---|---|---|---|---|---|---|
| 型號Model | 外被顏色Jacket Color | 中心導體結構Conductor | 絕緣材質Insulation | 遮蔽密度Shield | 特性阻抗Impedance(Ω) | 衰減Attenuation dB / 30M (1.5 GHz) |
靜態電容Capacitance (pf/M) |
| 3G/6G/ 12G-SDI |
8.0 mm | 18AWG (1*1.02mm) 裸銅線 Bare Copper |
發泡PE Natural Foamed Polyolefin |
※鋁箔隔離100% |
75±3 |
8.5 |
53.3 |
| 1806 | 藍色 BLUE |
||||||
1806標準衰減值 (1806 Nominal Attenuation)
| 頻率 Frequency |
10MHz | 270MHz | 750MHz | 1GHz | 1.5GHz | 3GHz | 4.5GHz | 6GHz |
|---|---|---|---|---|---|---|---|---|
| 型號(Model) dB/30M |
||||||||
| 1806 | 0.7 | 2.9 | 5.5 | 6.7 | 8.5 | 13.3 | 16.5 | 18.5 |
外被材質:PVC(符合 ROHS) 耐電壓: 500V AC /一分鐘
Jacket : PVC (ROHS compliant) Dielectric strength : 500V AC/min
特點 Features
- 75Ω，RG-6，18AWG，SDI同軸電纜，特別適用於HD/3G/6G/12G-SDI訊號傳輸 75Ω, RG-6, 18AWG, SDI Coax, specifically designed for HD/3G/6G/12G-SDI signal transmission.
- 三層屏蔽設計(雙層高密度鍍錫銅編織網+鋁箔)，提供最高等級的隔離效果 Triple-layer shielding design (dual-layer high-density tinned copper braided mesh + aluminum foil) provides the highest level of isolation.
- 此款用於固定安裝，請避免反覆彎曲及避免在移動或活動壓力過大的場合使用 Designed for fixed installation, please avoid repeated bending or external pressure.
- 搭配的PLUS IN BNC型號為：BNC1600及BNC292，可傳輸3G-SDI訊號達100M。 When paired with PLUS IN BNC models BNC1600 and BNC292, it can transmit 3G-SDI signals up to 100M.
- 搭配的PLUS IN BNC型號為：BNC41600，可傳輸12G-SDI訊號達50M。 When paired with the PLUS IN BNC model BNC41600, it can transmit 12G-SDI signals up to 50M.
