1306 (23AWG)
75Ω 3G-SDI 數位影像同軸電纜 (23AWG) 75Ω 3G-SDI Digital Video Coaxial Cable (23AWG)

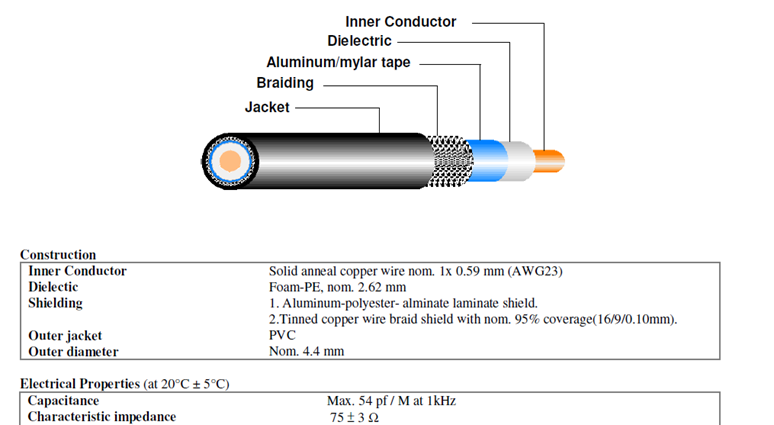

| 類型Type | 外徑O.D.(mm) | 單元結構Composition | 電氣特性Electrical Characteristics | ||||
|---|---|---|---|---|---|---|---|
| 型號Model | 外被顏色Jacket Color | 中心導體結構Conductor | 絕緣材質Insulation | 遮蔽密度Shield | 特性阻抗Impedance(Ω) | 衰減Attenuation dB / 30M (1.5 GHz) |
靜態電容Capacitance (pf/M) |
| 3G-SDI | 4.5 mm | 23AWG (1*0.59mm) 裸銅線 Bare Copper |
發泡聚乙烯 Natural Foamed Polyolefin |
※鋁箔隔離100% |
75±3 |
13.1 |
54 |
| 1306 | 藍色、綠色 Blue and Green |
||||||
1306標準衰減值 (1306 Nominal Attenuation)
| 頻率 Frequency |
10MHz | 135MH | 180MHz | 270MHz | 750MHz | 1GHz | 1.5GHz | 3GHz | 4.5GHz |
|---|---|---|---|---|---|---|---|---|---|
| 型號(Model) dB/30M |
|||||||||
| 1306 | 1.54 | 3.9 | 4.6 | 5.6 | 9 | 10.5 | 13.11 | 18.8 | 25 |
外被材質:PVC(符合 ROHS) 耐電壓: 500V AC /一分鐘
Jacket : PVC (ROHS compliant) Dielectric strength : 500V AC/min
特點 Features
- 75Ω，SDI同軸電纜，Mini RG-59，23AWG，特別適用於HD/3G-SDI訊號傳輸 75Ω, SDI Coax, Mini RG-59, 23AWG, specifically designed for HD/3G-SDI signal transmission.
- 高密度鍍錫銅編織網+鋁箔，提供優良的隔離效果 High-density tinned copper braided + aluminum foil shielding, offering excellent isolation.
- 適用於機櫃跳線或轉播車內使用 Rack installation (thin cable O.D. 4.5mm), Ideal for use in OB van.
- 此款用於固定安裝，請避免反覆彎曲及避免在移動或活動壓力過大的場合使用 Designed for fixed installation, please avoid repeated bending or external pressure.
- 搭配的PLUS IN BNC型號為：BNC1300，可傳輸3G-SDI訊號達50M。 When paired with PLUS IN BNC models BNC1300, it can transmit 3G-SDI signals up to 50M.
